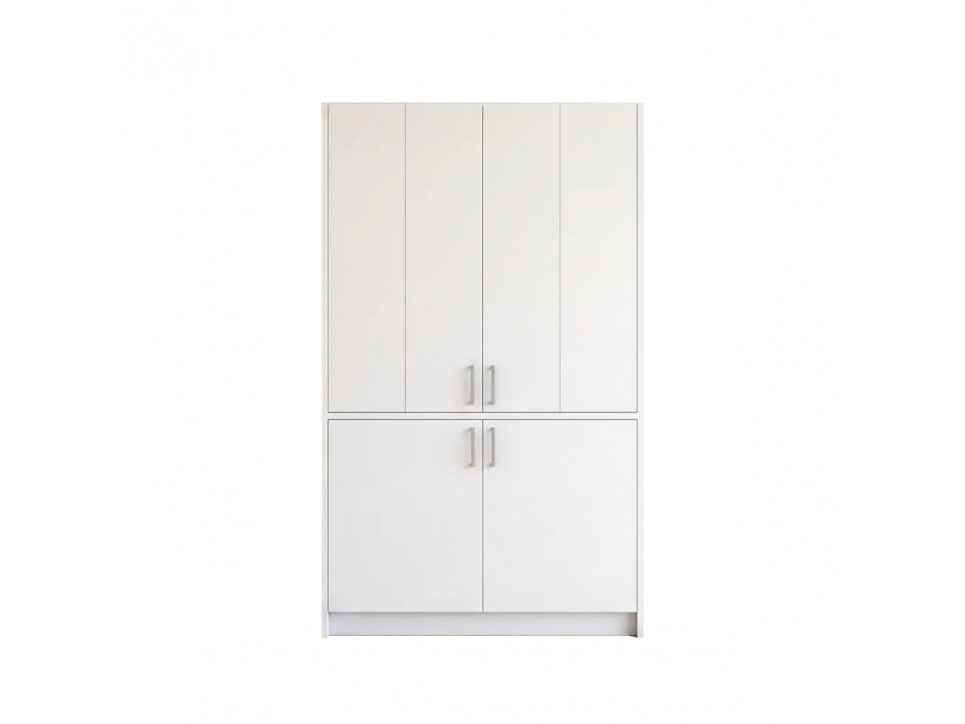

Vento Secret Kitchen
VENTO is an innovative solution that is ideal for those who wish to optimise space without sacrificing functionality. It allows the kitchen to be elegantly concealed while maintaining a clean, minimalist design.
- It is designed for environments where space optimisation is essential like guest rooms, studio apartments, dorms, bungalows, tiny houses, office spaces etc.

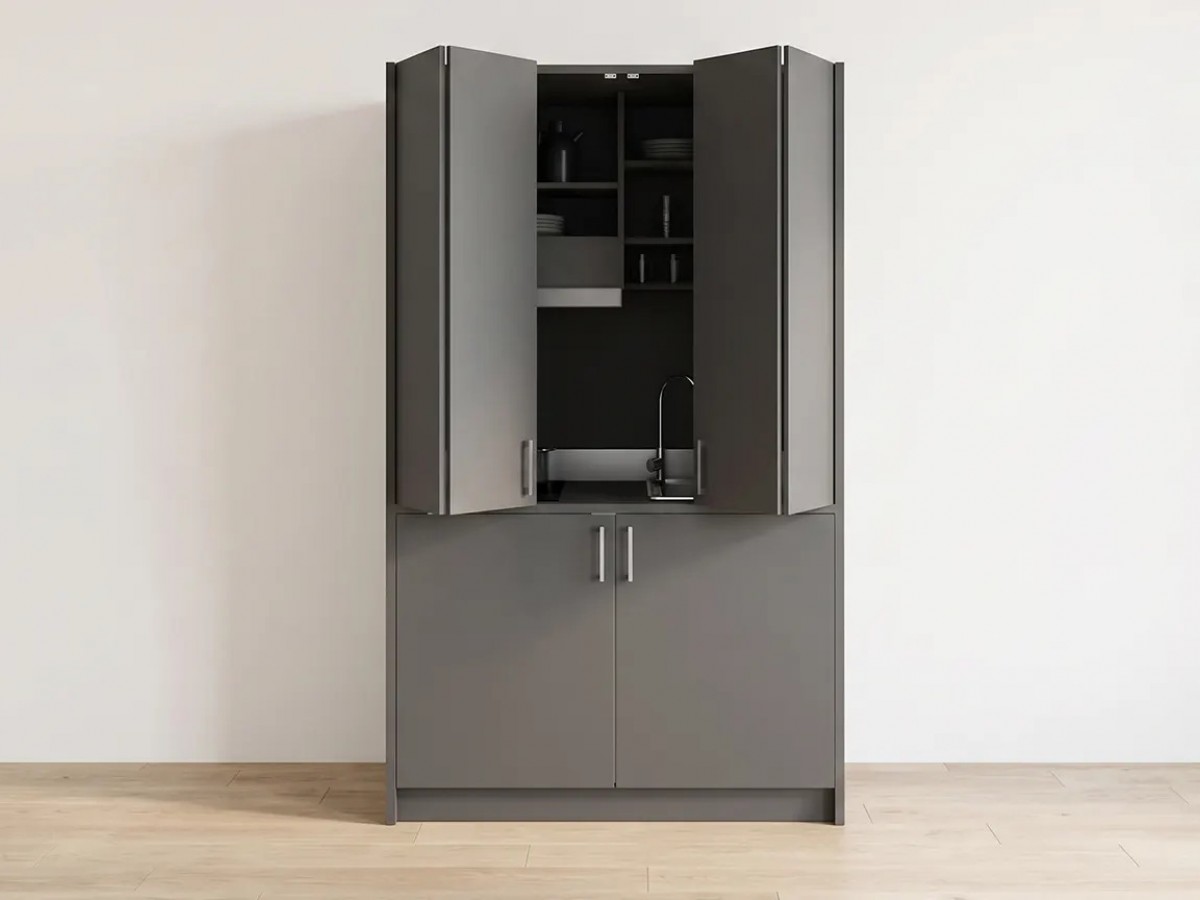

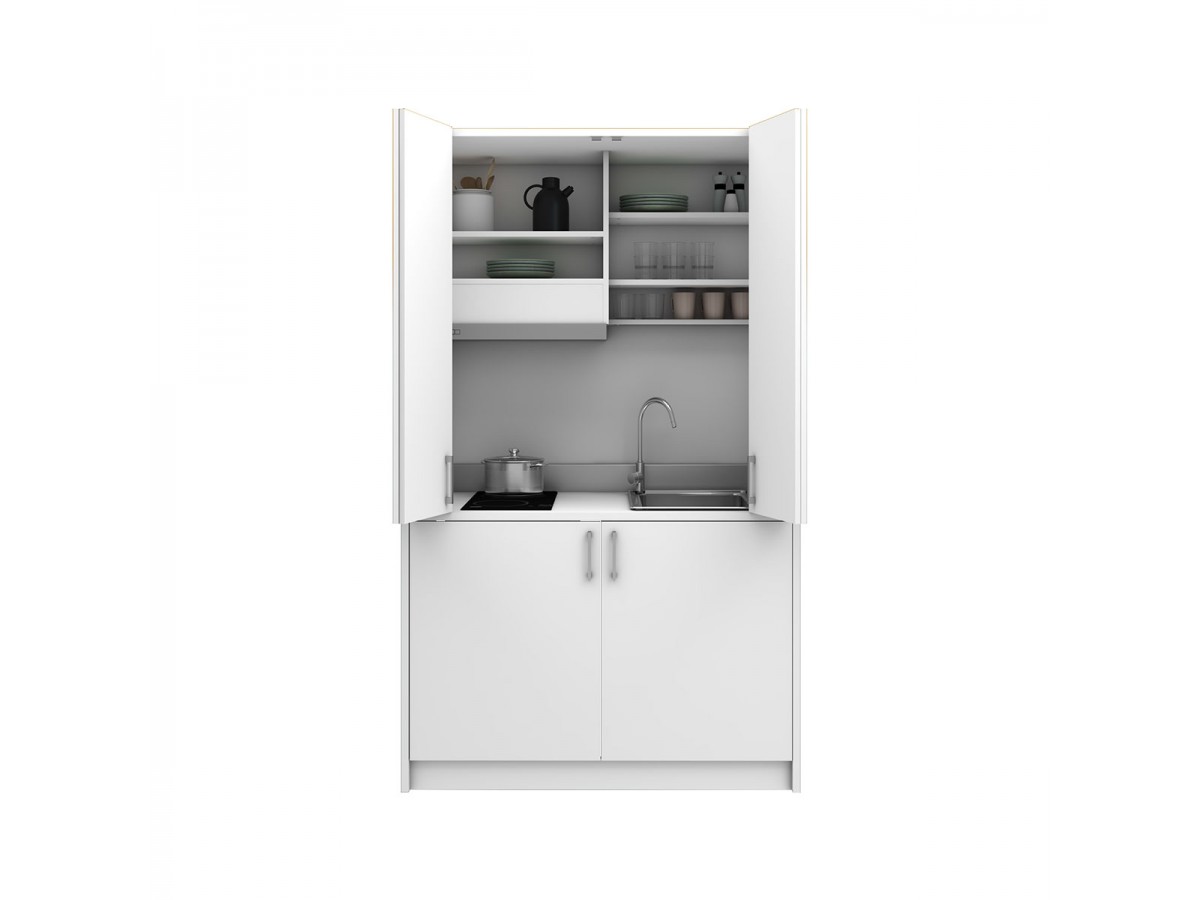

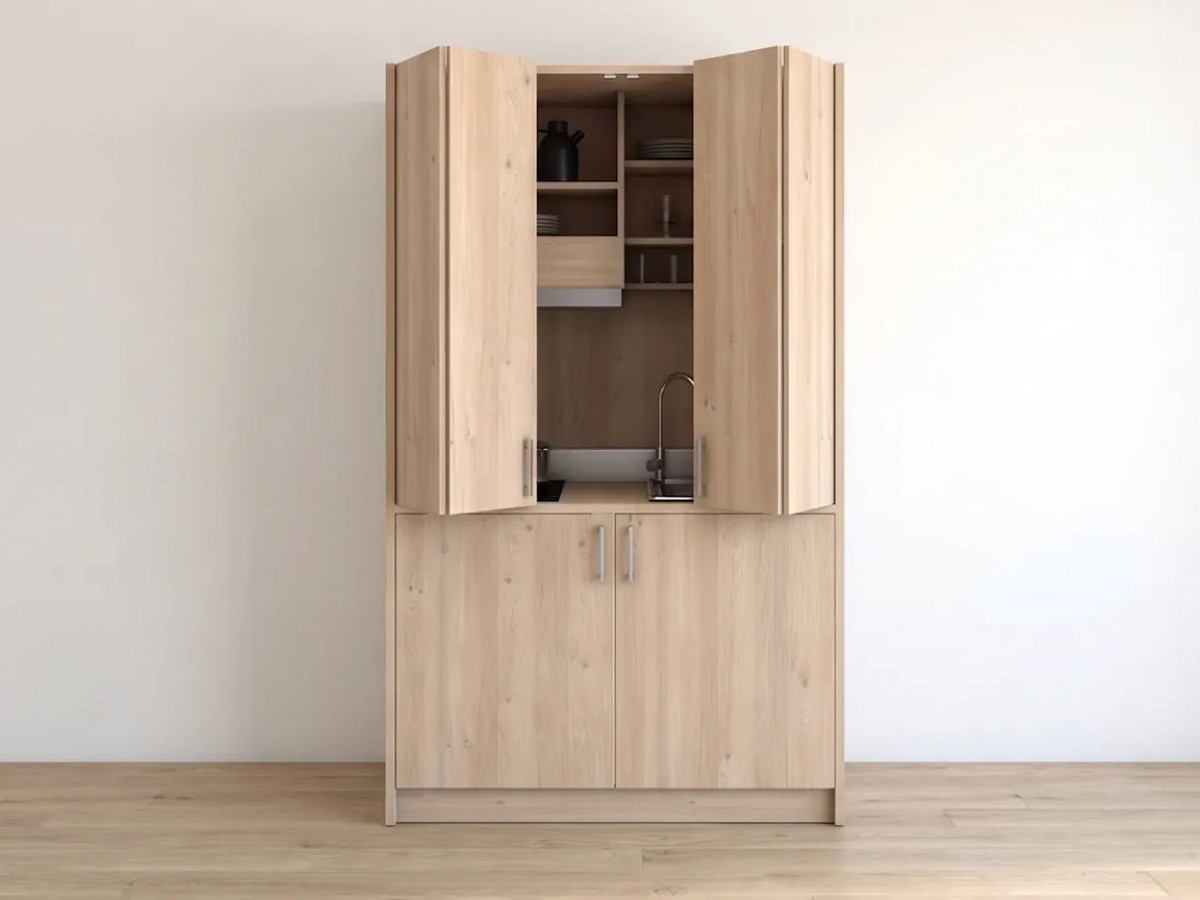

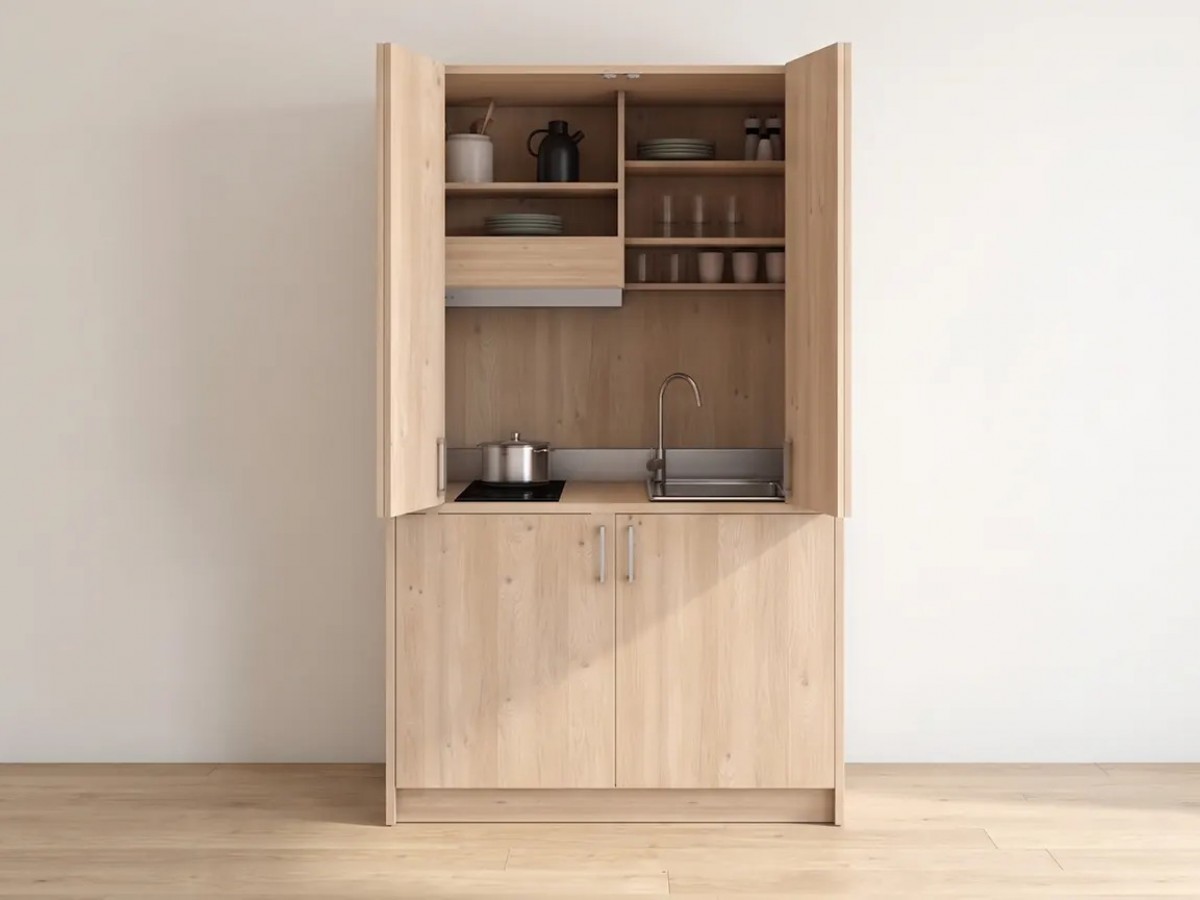

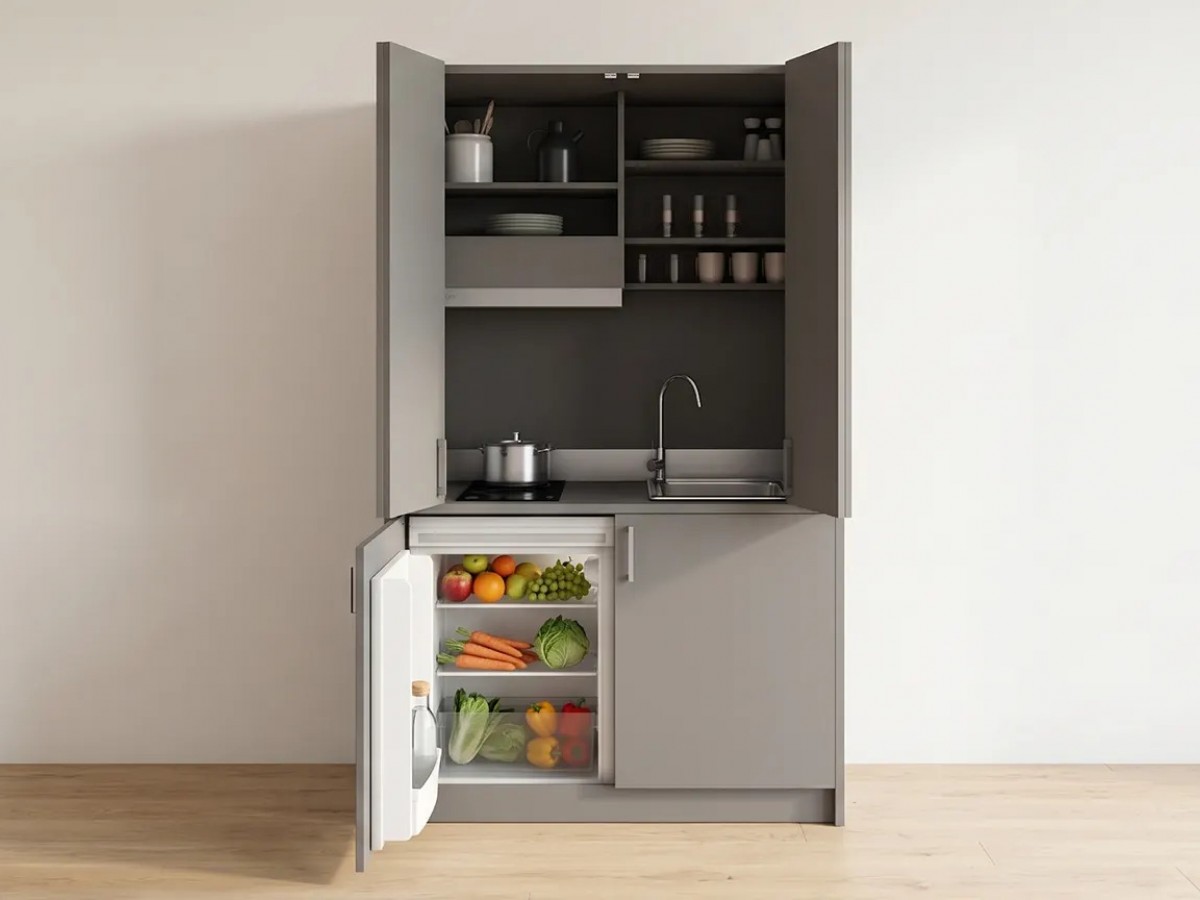

- The work area is hidden behind bi-fold sliding doors (folding system by Hettich).
- VENTO kitchen can be assembled in two ways to mirror the locations of the aspirator, the sink and the fridge.
- The worktop is 47.2" × 23.6". VENTO kitchen comes with a chrome sink bowl (15.8" × 19.7"). The faucet and the kitchen appliances are not included.
- The worktop is cut out for the built-in electric cooktop. Summit CR2B12ST is a suitable model.
- In case a regular (not built-in) mini fridge is used, the door should be removed. Depending on the fridge’s size, it may not be possible to install the toe kick panel (3.9"). This does not affect the assembly of the product negatively.
- VENTO kitchenette is compatible only with ductless (recirculating) cooker hoods. Faber Flexa Series FLEX24SS300 is a suitable cooker hood model.
- Ideal for spaces with drywalls as wall mounting is not necessary.
- Easy assembly with minimum amount of components and pre-drilled holes.
Our furniture is both space-saving and environmentally friendly.
Our frames are constructed from a high-density 1 1/4 inch thick Thermo-Foil Laminate Board (won’t crack, peel, or warp), CARB PHASE II / TSCA TITLE VI certified, for durability.
Please reach out to sales@wallbedplace.com for an assembly manual.
Appliances are not included with VENTO. VENTO is built around compact appliance sizes sold in the U.S. Below are models that fit the unit's dimensions, with sizes and approximate prices, so you can plan and budget before you order. We don't sell appliances and we don't specify or approve them — this list is a dimensional starting point. Always check the manufacturer's current installation manual and your own finished opening before purchasing.
Best fit = comfortable dimensional margin. Check depth / height / listing = fits the published envelope, but with little margin, or needs confirmation before purchase.
Maximum appliance envelope
| Refrigerator bay | __" W × __" D × __" H |
|---|---|
| Worktop | __" W × __" D |
Compact refrigerators
Compact / undercounter class only — a full-size refrigerator will not fit. If you use a freestanding (non–built-in) unit, the VENTO cabinet door for that bay is removed.
| Model | Capacity | Size (W × D × H) | Approx. price | Fit |
|---|---|---|---|---|
| SIMZLIFE RF001-32BL-S-HD | 3.2 cu ft | 17.5" × 19.1" × 31.1" | $140 | Best fit |
| Danby DAR044A4WDD-6 | 4.4 cu ft, freezerless | 20.69" × 20.88" × 32.81" | $300 | Best fit |
| Hisense HRC044AVE | 4.4 cu ft | 18.7" × 21.9" × 33.3" | $189 | Check height |
| Avanti RM4436SS | 4.4 cu ft | 19.25" × 22.0" × 33.0" | $199 | Check depth |
| Magic Chef HMAR45HCBE | 4.4 cu ft, freezerless | 20.28" × 21.65" × 31.3" | $224 | Check depth |
| KNDKO 4.4 cu ft | 4.4 cu ft | 20.28" × 22.05" × 31.5" | $280 | Check depth |
Refrigerators need ventilation clearance beyond their body size — check what the manufacturer requires at the sides, top and rear.
Cooktops
The worktop cutout is made at the factory and must be specified when you order. Choose your cooktop before placing the order and send us the model's installation drawing so the cutout matches.
| Model | Type / power | Size (W × D × H) | Cutout | Approx. price | Fit |
|---|---|---|---|---|---|
| VEVOR QRSDTL12INCHPTG6ZV1 | Radiant, 120V, 1800W | 11.6" × 20.1" × 3.6" | 10.6" × 19.3" | $95 | Check listing |
| VEVOR QRSDC2121800W77EVV1 | Induction, 110–120V, 1800W | 20.1" × 11.6" × 3.5" | 18.9" × 10.63" | $117 | Check listing |
"Check listing" means the retailer doesn't publish a recognized U.S. electrical safety certification (UL, ETL or cTUVus) — confirm before purchasing. On the VEVOR QRSDC2121800W77EVV1, confirm the width and depth orientation against the installation sheet before the cutout is made.
Before you order
- Measure your finished clear opening — width at the narrowest point, depth to the rear, height including toe kick
- Check ventilation and service clearances, not just body dimensions
- Confirm voltage and amperage against the circuits at your installation site
- Select your cooktop first, so the worktop cutout can be made correctly
- Have electrical work done by a licensed professional
Prices are approximate U.S. retail references checked August 2026 and vary by retailer, finish and promotion. Multimo does not sell, specify, approve or warrant third-party appliances. Verify against the manufacturer's current installation manual before purchasing.

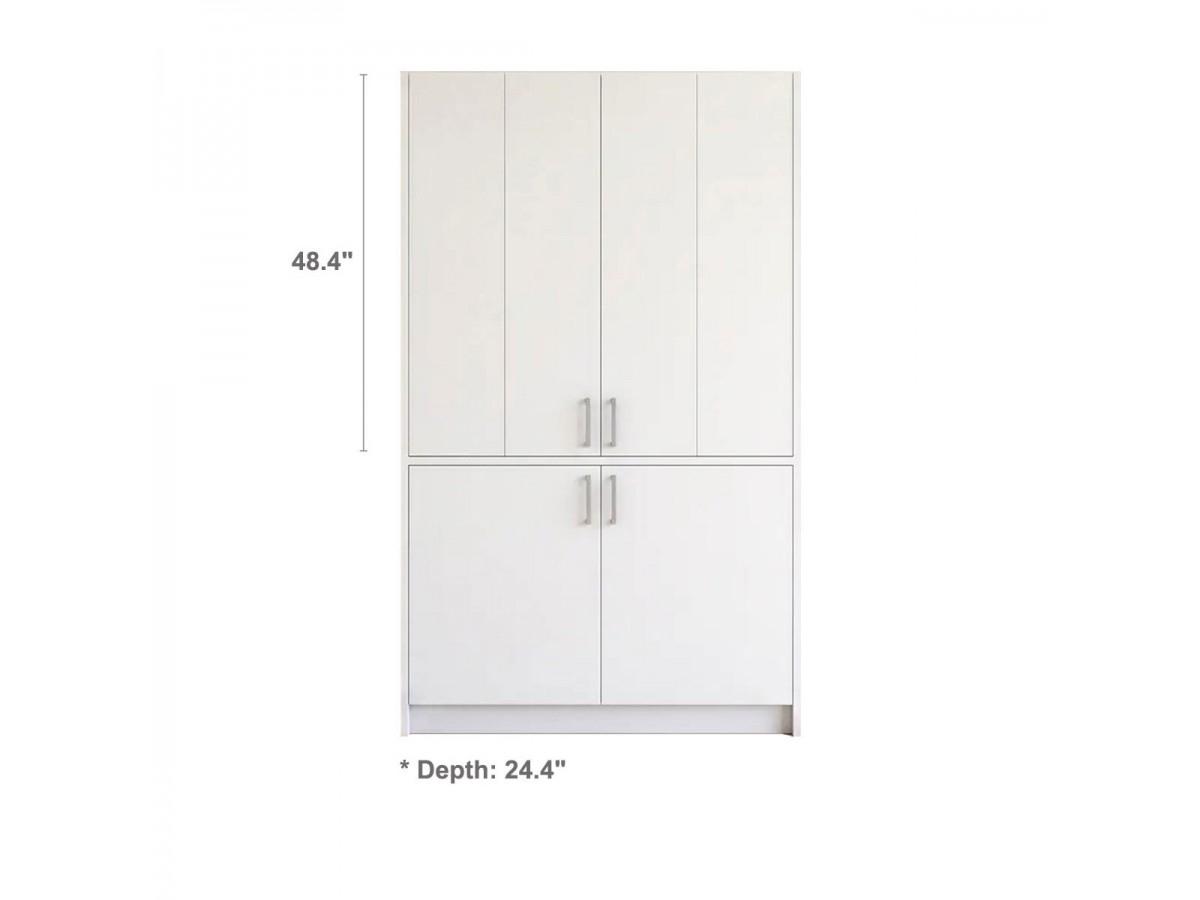

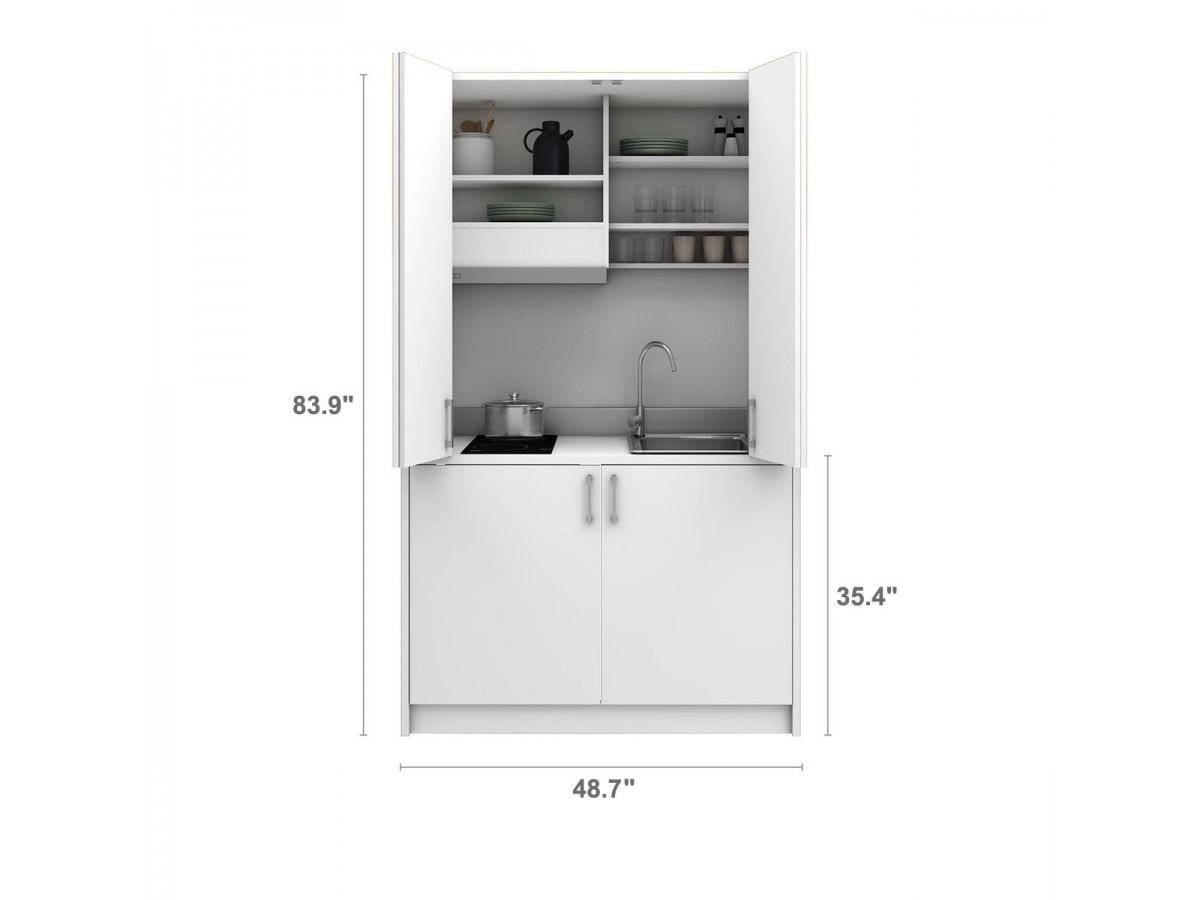

83.9" H x 48.7” W x 24.4” D
