Dori Secret Kitchen

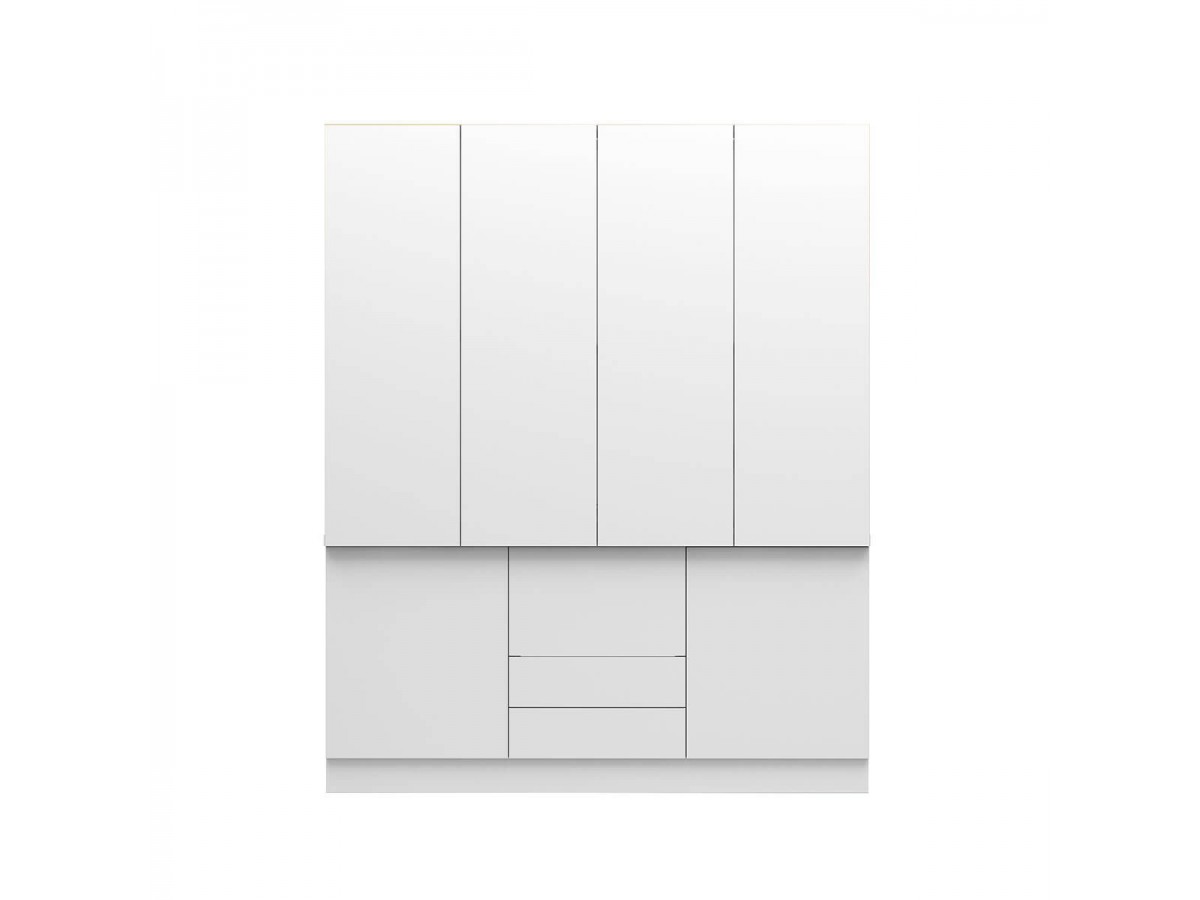

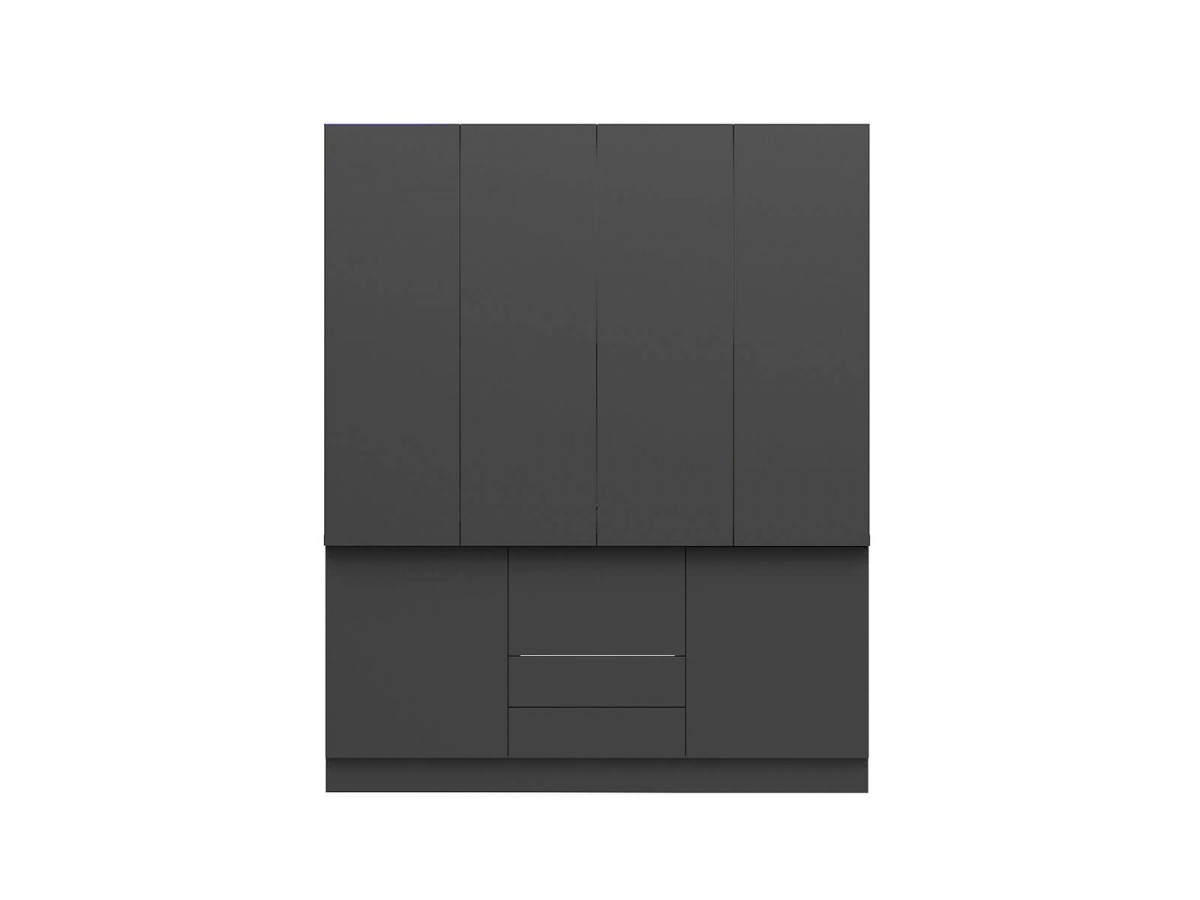

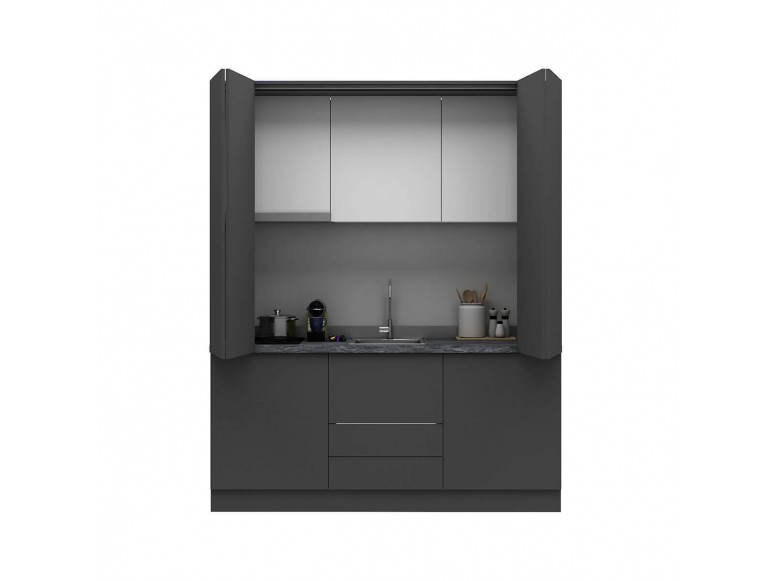

DORI is an innovative solution that allows the kitchen to be elegantly concealed while maintaining a clean, minimalist design. Its functional features are designed for studio apartments, short term rentals, dorms, office spaces etc.

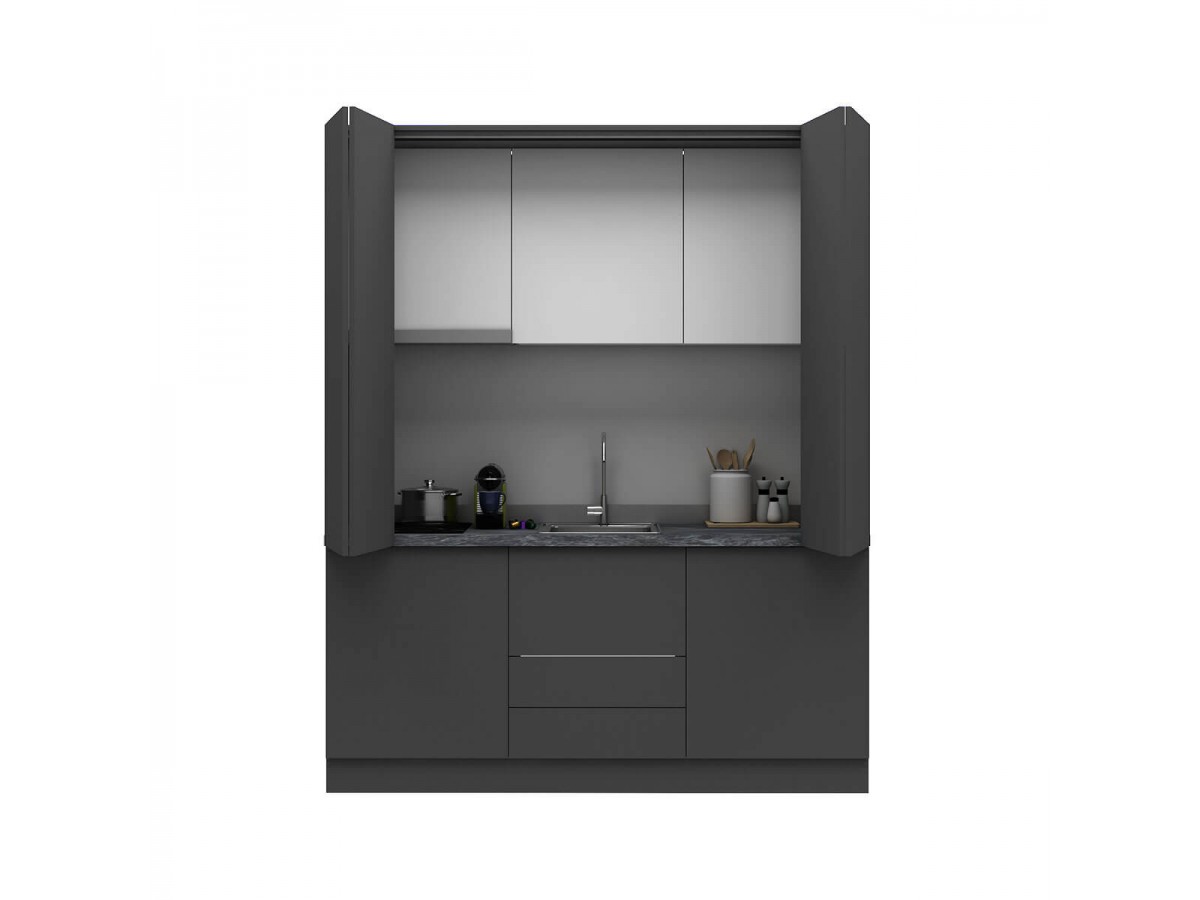

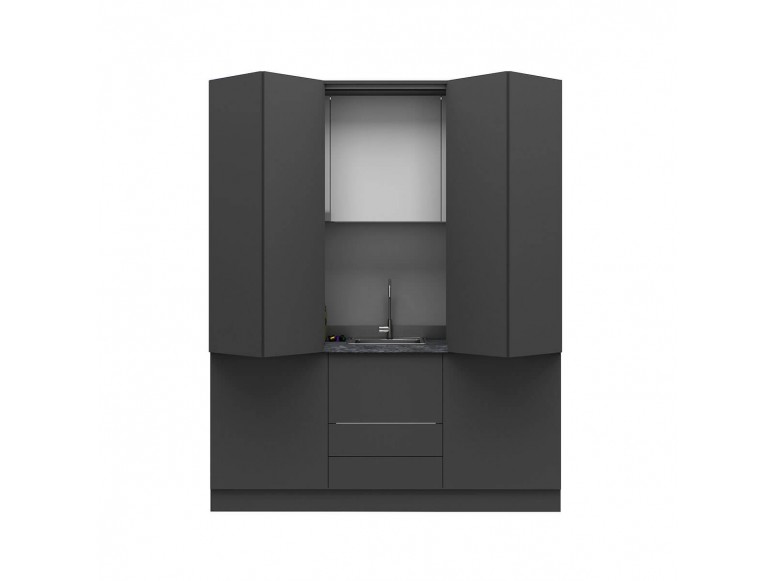

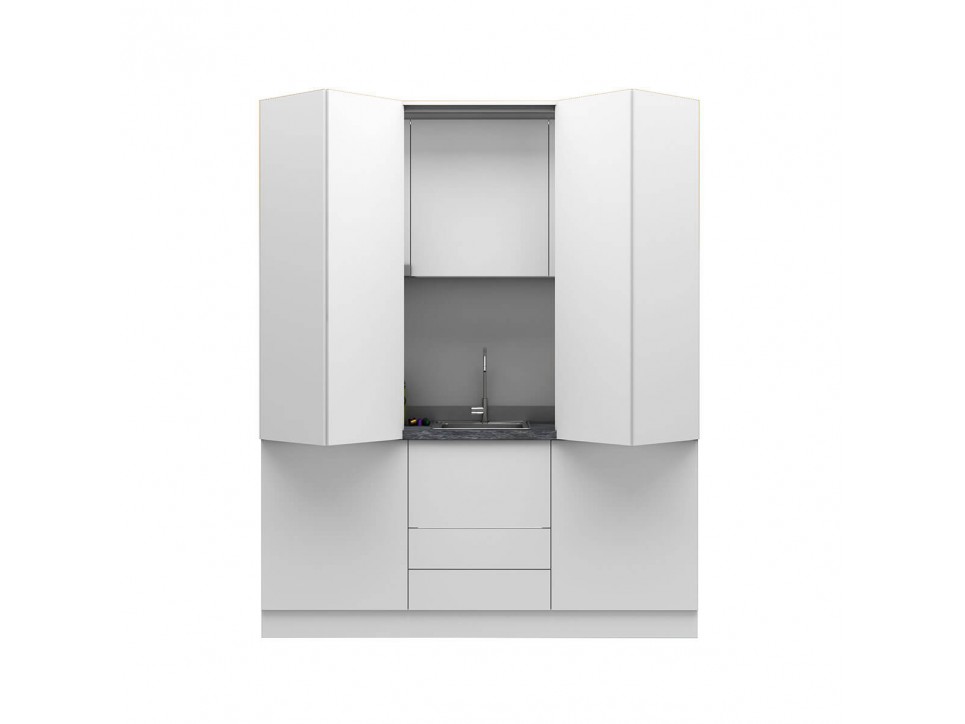

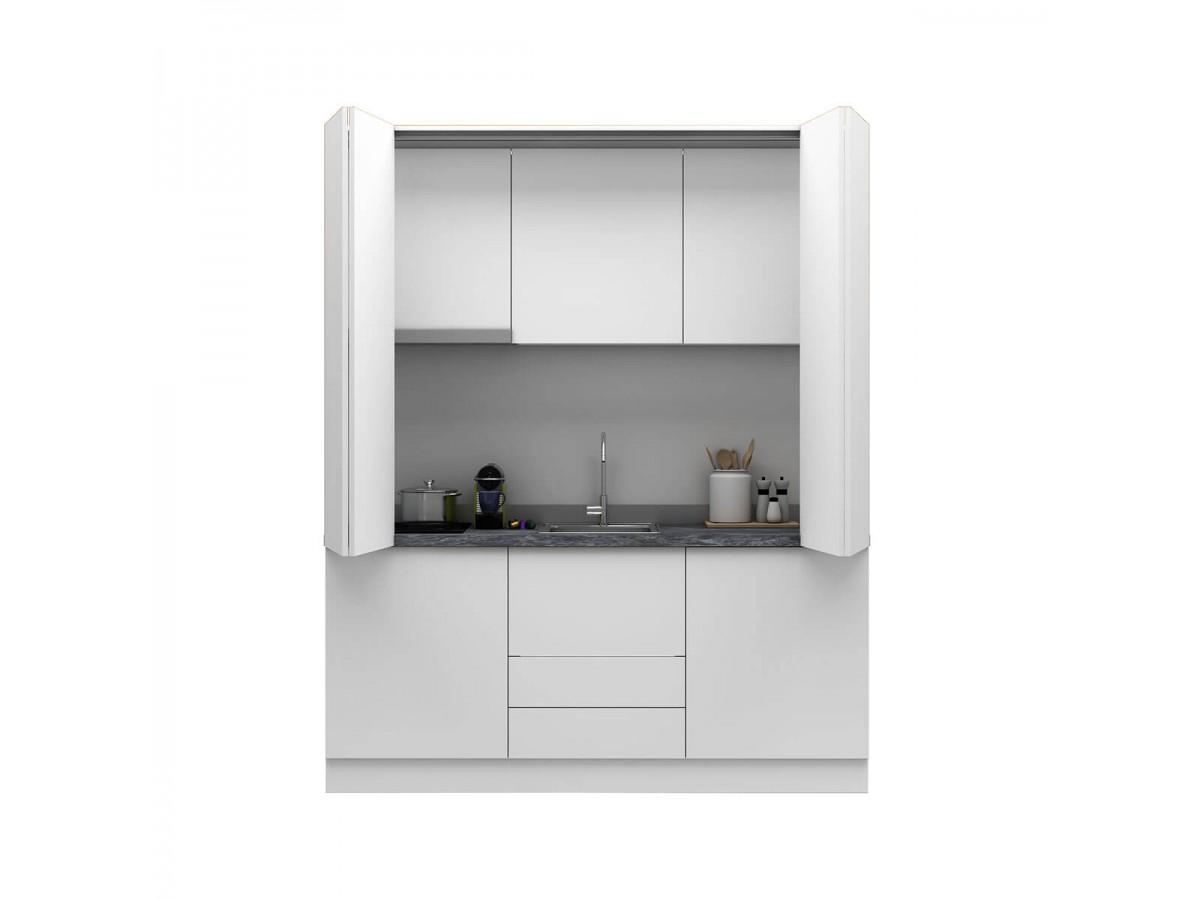

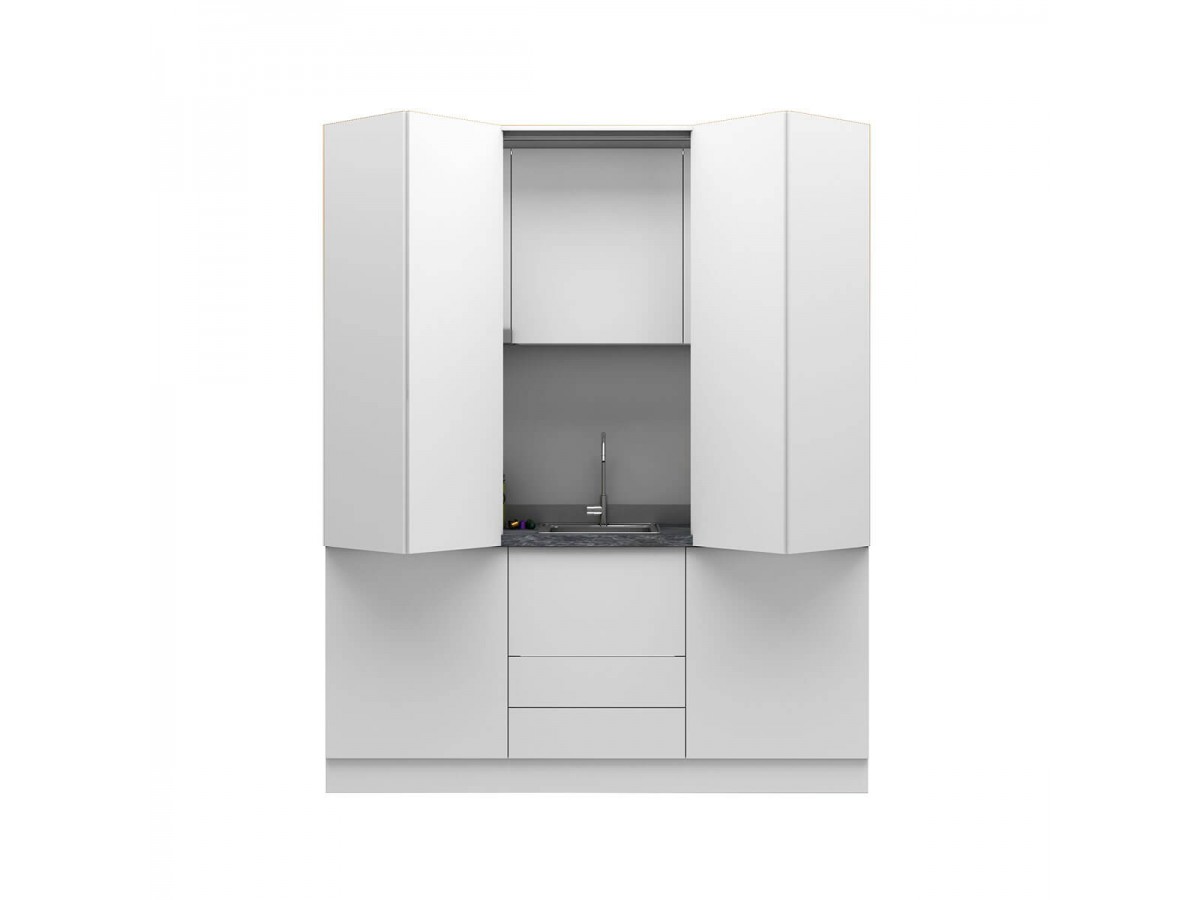

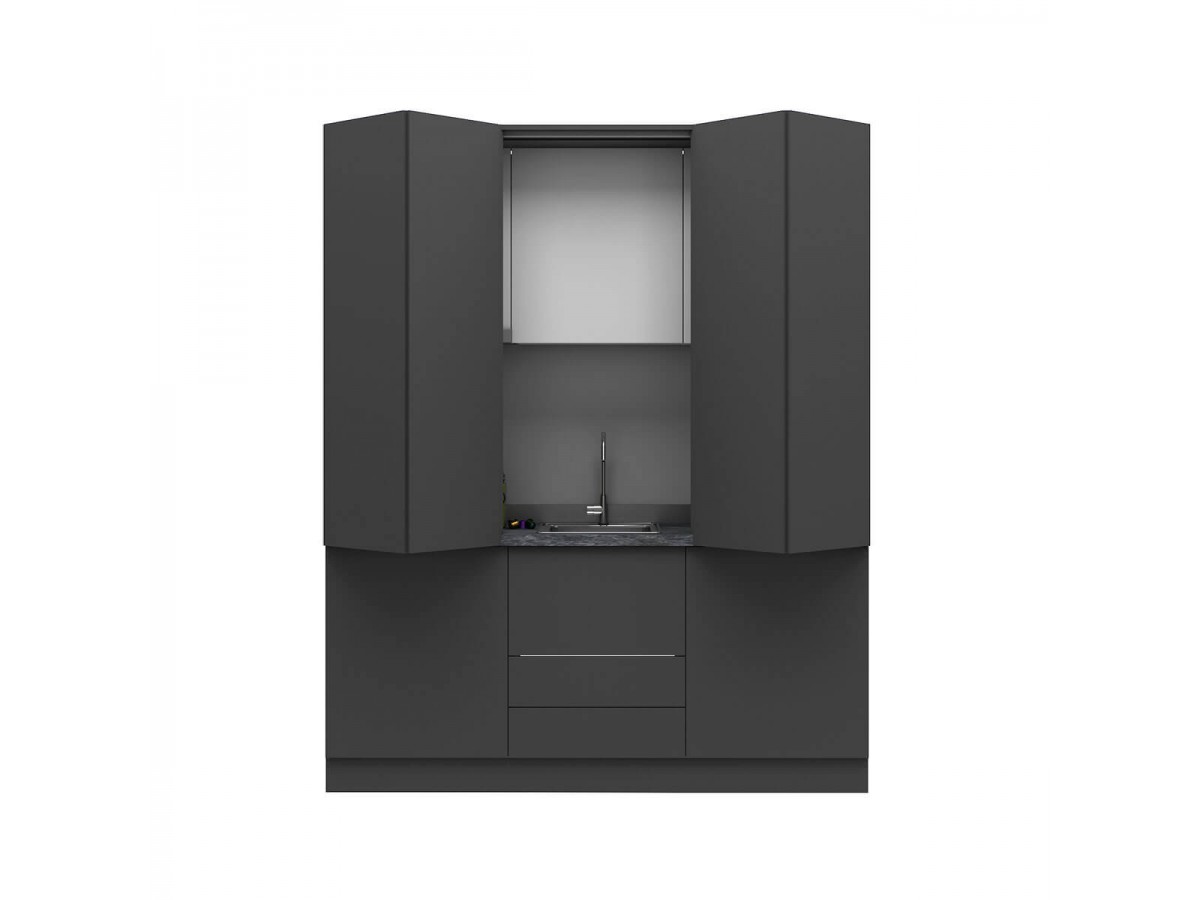

- The work area is hidden behind bi-fold sliding doors (folding system by Hettich).

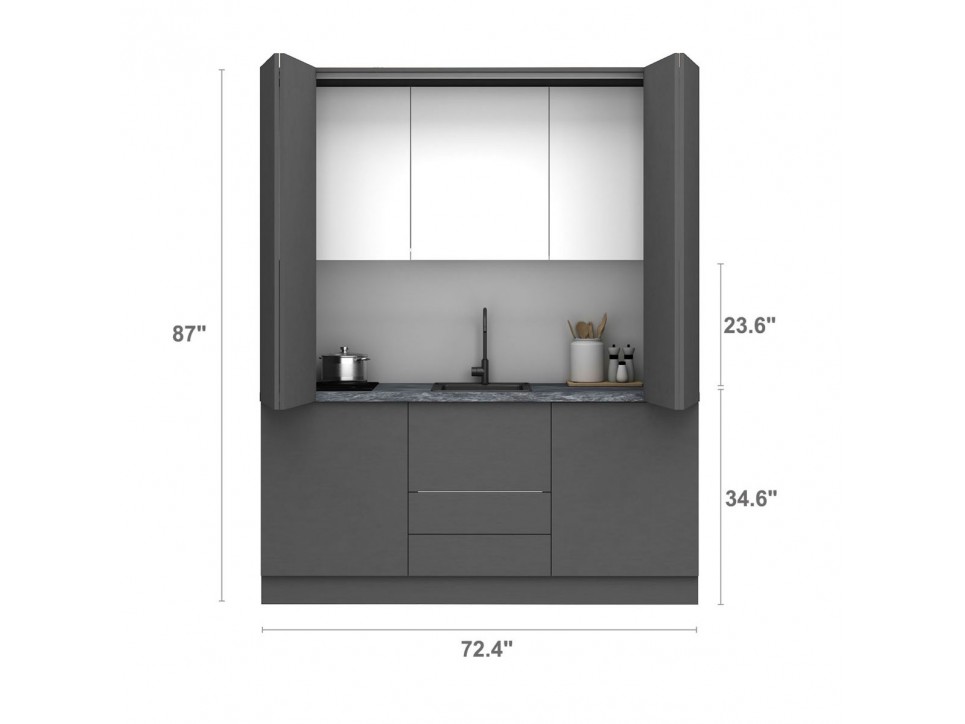

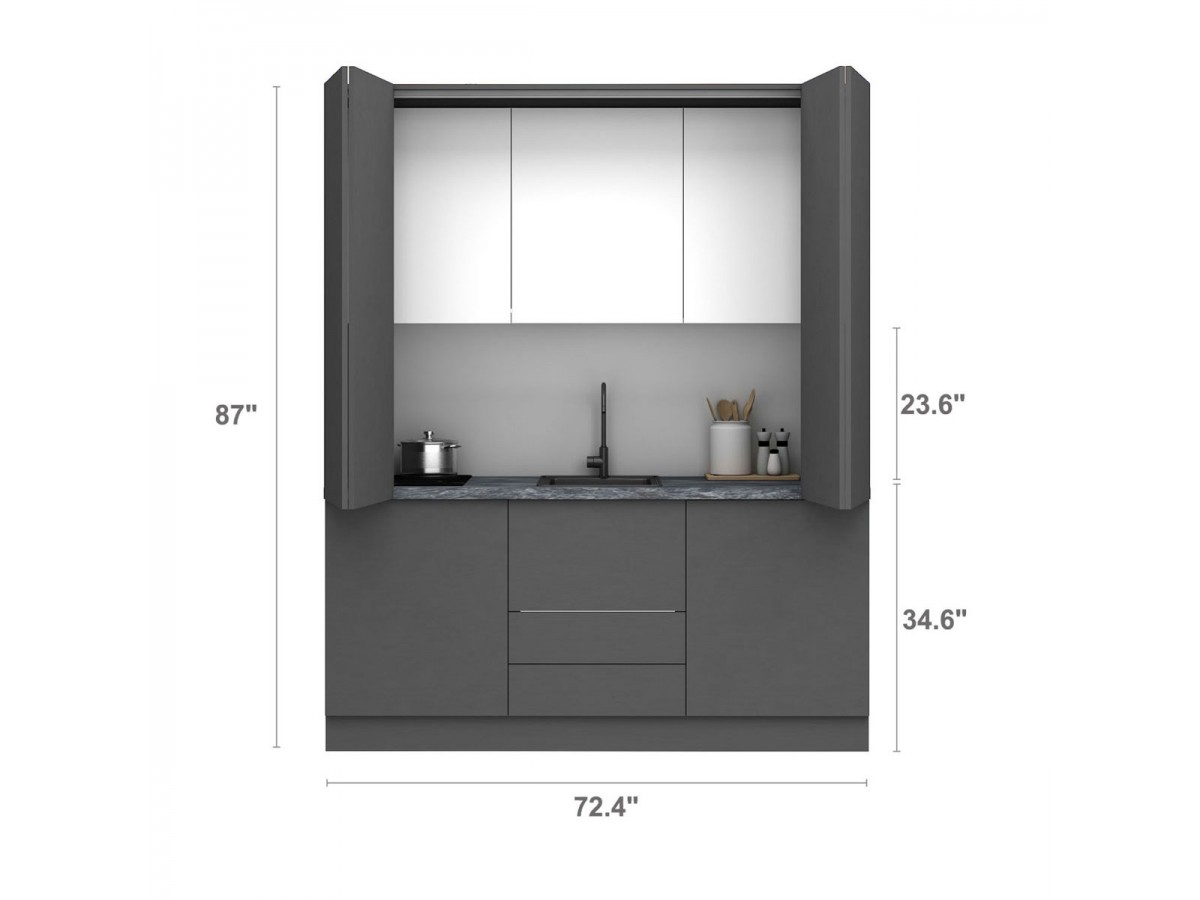

- The worktop is 70.9” x 22.8” wide and made of 1.5” thick laminated material. The chrome sink bowl (19.7” x 19.7” ) is optional (product code ME-273).
- The faucet and the kitchen appliances are not included.

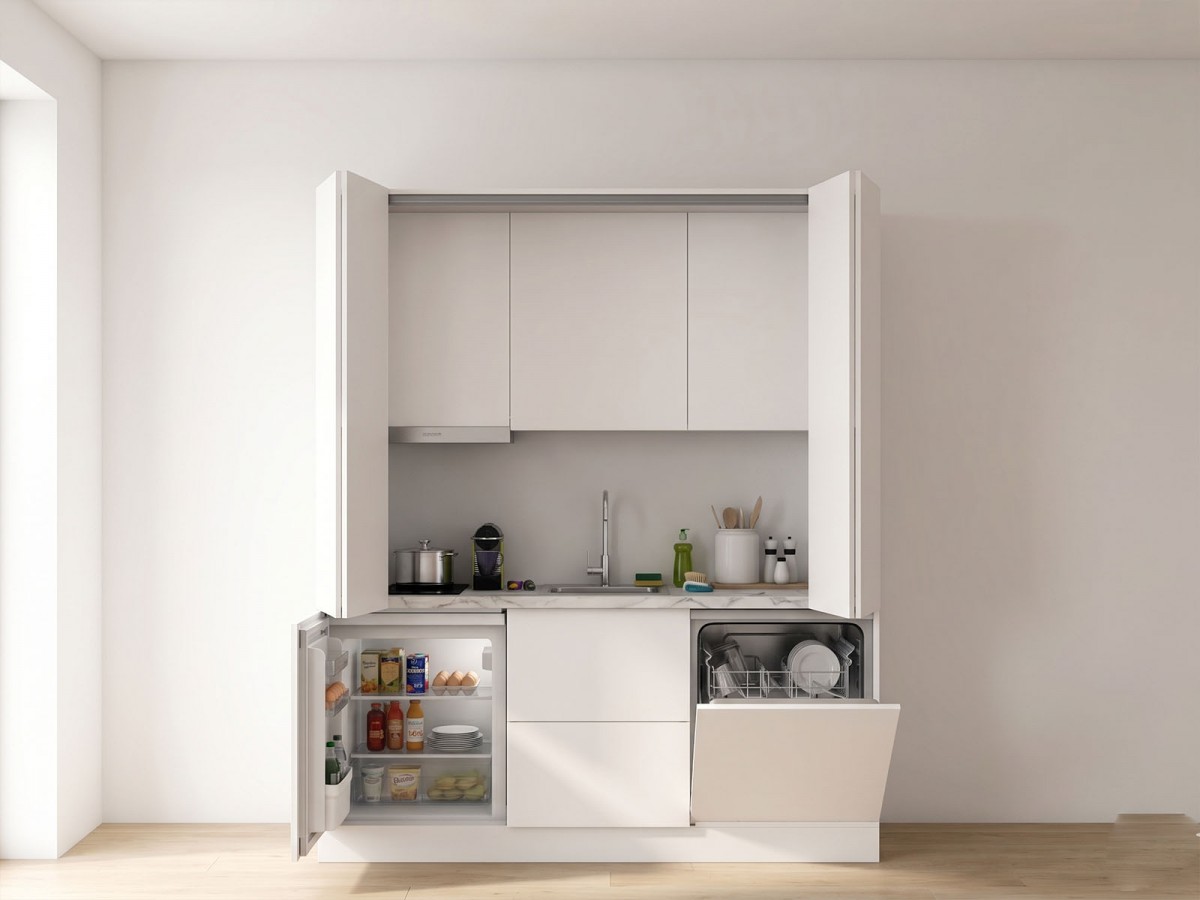

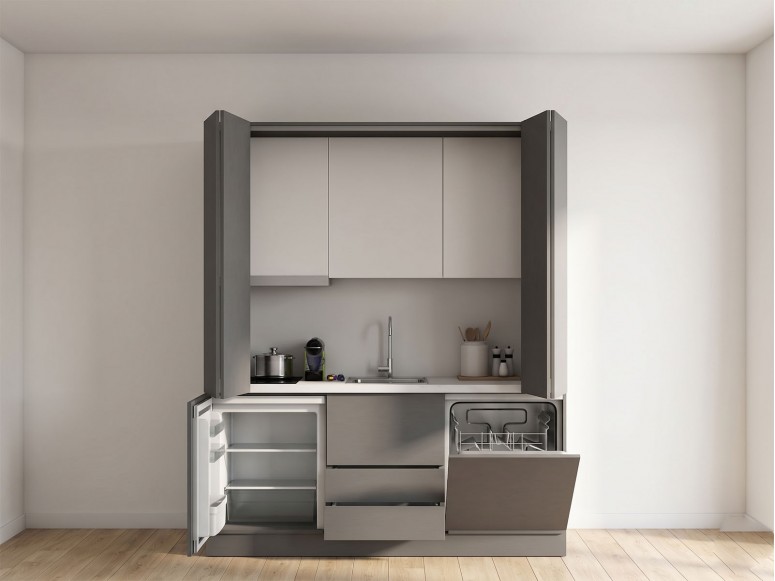

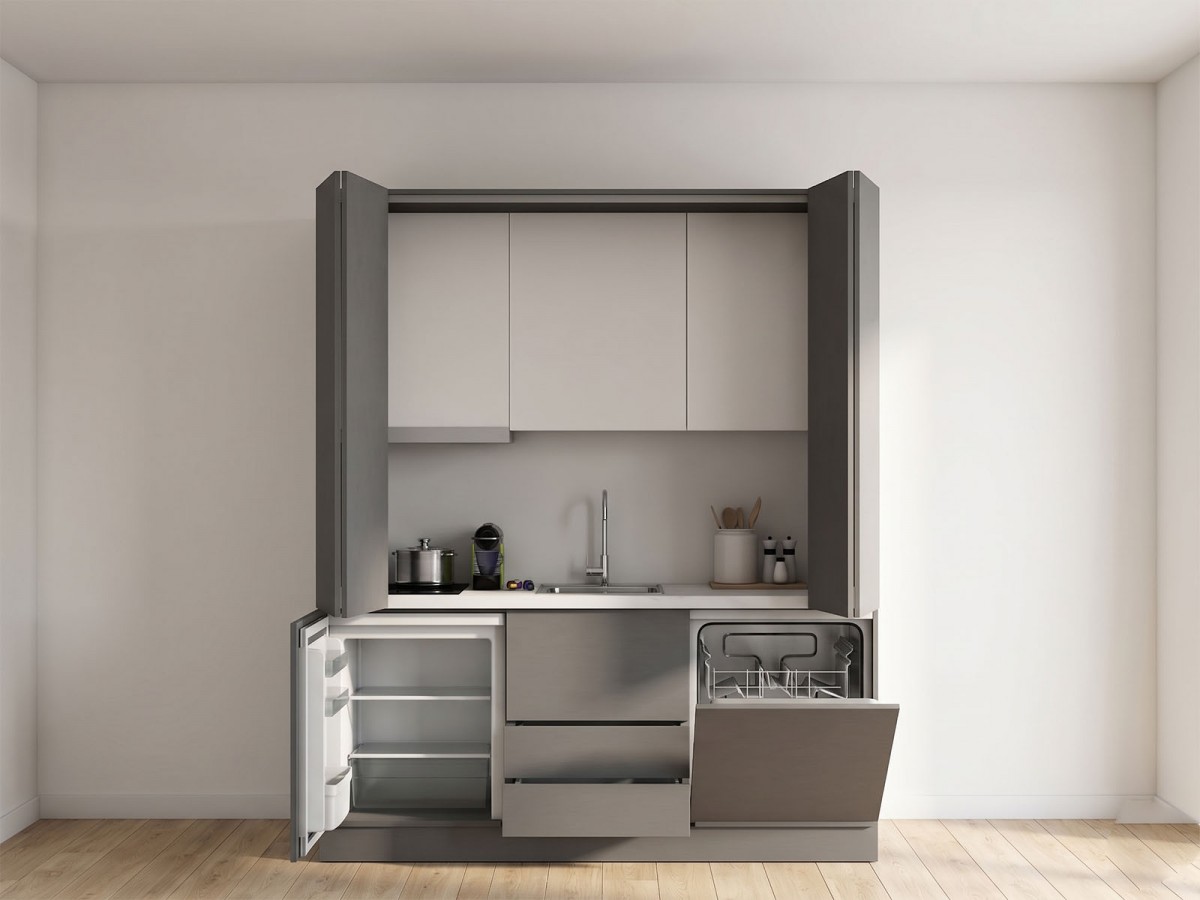

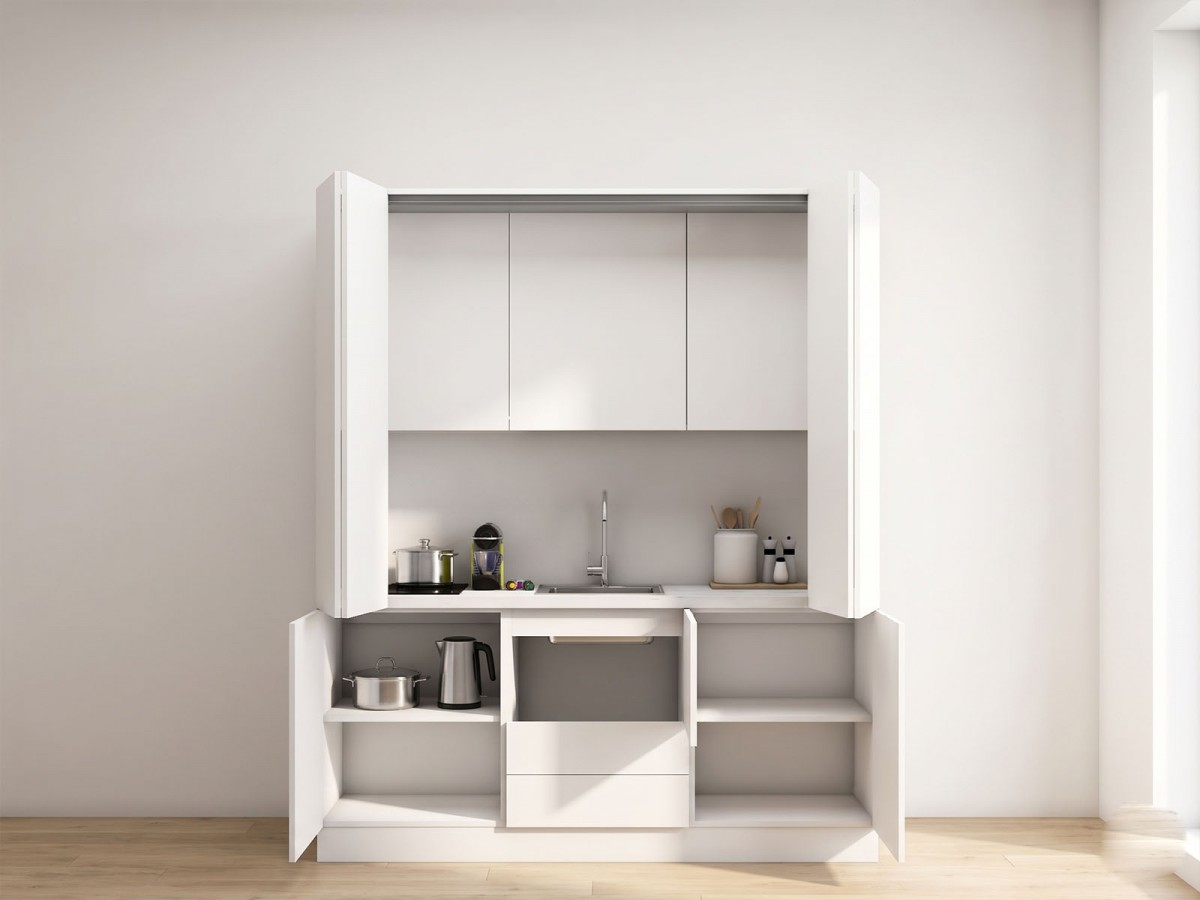

- There are shelves inside the cupboards below that can be removed to fit the dish washer and the fridge. Below the sink is a door and two drawers.
- Space for an office type mini fridge (or a mini bar fridge) can be made by removing the shelf.
- Maximum dimensions for the mini fridge are 23.6” W, 22.8” D, 33.5” H (depending on the electric hob’s depth). In case a regular (not built-in) mini fridge is used, the door should be removed. Depending on the fridge’s size, it may not be possible to install the toe kick panel (4.7”). This does not affect the assembly of the product negatively.
- EQTemp ACR51W, Miele K31222UI are suitable built-in mini fridge models.
- Maximum dimensions for the dish washer are 23.6” W, 22.8” D, 33.5” H. In case a regular (not built-in) dish washer is used, the door should be removed. Depending on the dish washer’s size, it may not be possible to install the toe kick panel (4.7”). This does not affect the assembly of the product negatively.
- Suitable built-in dish washer models are Dacor DDW24G9000AP, Smeg DW8630, LG Studio SDWD24P3, Electrolux EDSR4932AP.
- Suitable -regular- dish washer models are Miele G5008SCU, Bosch 300 Series SGE53C55UC, Bosch 300 Series SGE53B52UC.
- The cut out for the built-in electric cooktop is to be done by MULTIMO on demand (should be clarified in order). Summit CR2B12ST is a suitable cooktop model.
Our furniture is both space-saving and environmentally friendly.
Our frames are constructed from a high-density 1 1/4 inch thick Thermo-Foil Laminate Board (won’t crack, peel, or warp), CARB PHASE II / TSCA TITLE VI certified, for durability.
Please reach out to sales@wallbedplace.com for an assembly manual.
Appliances are not included with DORI. DORI is built around compact appliance sizes sold in the U.S. Below are models that fit the unit's dimensions, with sizes and approximate prices, so you can plan and budget before you order. We don't sell appliances and we don't specify or approve them — this list is a dimensional starting point. Always check the manufacturer's current installation manual and your own finished opening before purchasing.
Best fit = comfortable dimensional margin. Check depth / height / listing = fits the published envelope, but with little margin, or needs confirmation before purchase.
Maximum appliance envelope
| Refrigerator bay | 23.6" W × 22.8" D × 33.5" H |
|---|---|
| Dishwasher bay | 23.6" W × 22.8" D × 33.5" H |
| Worktop | 70.9" W × 22.8" D |
Shelves inside the lower cabinets are removable to open up the fridge and dishwasher bays.
Compact refrigerators
Compact / undercounter class only — a full-size refrigerator will not fit. If you use a freestanding (non–built-in) unit, the DORI cabinet door for that bay is removed. Depending on the appliance, the 4.7" toe kick panel may not be installable; this does not affect assembly or stability.
| Model | Capacity | Size (W × D × H) | Approx. price | Fit |
|---|---|---|---|---|
| SIMZLIFE RF001-32BL-S-HD | 3.2 cu ft | 17.5" × 19.1" × 31.1" | $140 | Best fit |
| Danby DAR044A4WDD-6 | 4.4 cu ft, freezerless | 20.69" × 20.88" × 32.81" | $300 | Best fit |
| Hisense HRC044AVE | 4.4 cu ft | 18.7" × 21.9" × 33.3" | $189 | Check height |
| Avanti RM4436SS | 4.4 cu ft | 19.25" × 22.0" × 33.0" | $199 | Check depth |
| Magic Chef HMAR45HCBE | 4.4 cu ft, freezerless | 20.28" × 21.65" × 31.3" | $224 | Check depth |
| KNDKO 4.4 cu ft | 4.4 cu ft | 20.28" × 22.05" × 31.5" | $280 | Check depth |
Refrigerators need ventilation clearance beyond their body size — check what the manufacturer requires at the sides, top and rear.
Cooktops
The worktop cutout is made at the factory and must be specified when you order. Choose your cooktop before placing the order and send us the model's installation drawing so the cutout matches.
| Model | Type / power | Size (W × D × H) | Cutout | Approx. price | Fit |
|---|---|---|---|---|---|
| VEVOR QRSDTL12INCHPTG6ZV1 | Radiant, 120V, 1800W | 11.6" × 20.1" × 3.6" | 10.6" × 19.3" | $95 | Check listing |
| VEVOR QRSDC2121800W77EVV1 | Induction, 110–120V, 1800W | 20.1" × 11.6" × 3.5" | 18.9" × 10.63" | $117 | Check listing |
"Check listing" means the retailer doesn't publish a recognized U.S. electrical safety certification (UL, ETL or cTUVus) — confirm before purchasing. On the VEVOR QRSDC2121800W77EVV1, confirm the width and depth orientation against the installation sheet before the cutout is made.
Dishwashers (18-inch)
18-inch class only. A standard 24-inch U.S. dishwasher is too wide for the bay.
| Model | Finish | Size (W × D × H) | Approx. price | Fit |
|---|---|---|---|---|
| Honeywell HDS18W | White | 18.0" × 22.6" × 32.4" | $400 | Best fit |
| SPT SD-9254WA | White | 17.6" × 22.6" × 32.4" | $449 | Best fit |
| Honeywell HDS18SS | Stainless | 18.0" × 22.6" × 32.4" | $488 | Best fit |
| SPT SD-9254SSA | Stainless | 17.6" × 22.6" × 32.4" | $492 | Best fit |
| EdgeStar BIDW1802SS | Stainless | 17.63" × 22.44" × 32.5" | $539 | Best fit |
| Avanti DW1833D3SE | Stainless | 17.75" × 22.5" × 32.5" | $576 | Best fit |
The SPT SD-9254WA, SPT SD-9254SSA and EdgeStar BIDW1802SS specify a 23" cutout depth. If you use a freestanding unit, the DORI cabinet door for that bay is removed. Plumbing and electrical connection should be done by a licensed installer.
Before you order
- Measure your finished clear opening — width at the narrowest point, depth to the rear, height including toe kick
- Check ventilation and service clearances, not just body dimensions
- Confirm voltage and amperage against the circuits at your installation site
- Select your cooktop first, so the worktop cutout can be made correctly
- Have plumbing and electrical work done by a licensed professional
Prices are approximate U.S. retail references checked August 2026 and vary by retailer, finish and promotion. Multimo does not sell, specify, approve or warrant third-party appliances. Verify against the manufacturer's current installation manual before purchasing.
